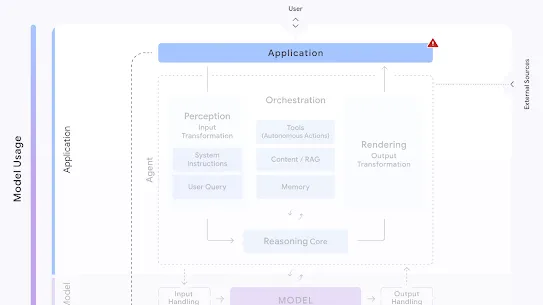

An agent’s interaction with the world begins at the Application, which serves as the interface for collecting both explicit user instructions and passively collected contextual data from its environment. This blend of inputs creates a primary security challenge of reliably distinguishing trusted commands from the controlling user versus potentially untrusted information from other sources. An agent application processes explicit user instructions, which can be given directly (synchronously) like a typed command, or be configured to execute automatically when a specific event occurs (asynchronously). It also gathers implicit contextual inputs—data that isn’t a direct command but is passively collected from the environment, such sensor readings, application state, or the content of recently opened documents.

This data is then passed to the Perception component, which is responsible for processing and understanding these inputs before they are sent to the agent’s reasoning core. This handoff is a critical security juncture, as the perception layer must reliably distinguish trusted user commands from untrusted data to prevent manipulation of the agent’s core logic.

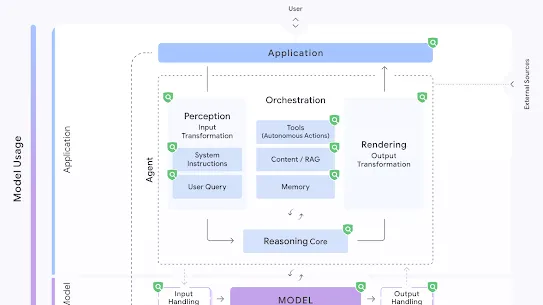

The Agent Risk Map includes two sub-components, showing the combination of inputs:

• System instructions: these define an agent’s capabilities, permissions, and limitations, such as the actions it can take and the tools it is allowed to use. For security, it’s critical to unambiguously separate these instructions from user data and other inputs, often using special control tokens to prevent prompt injection attacks.
• User queries: these contain the specific details of a user’s request after being processed. The query is then combined with system instructions and other contextual data, like agent memory or external information, to create a single, structured prompt for the reasoning core to process.

The core of an agent’s functionality is its ability to reason about a user’s goal and create a plan to achieve it. The reasoning core processes system instructions, user queries, and contextual information to generate a sequence of actions. The actions, or tool calls, allow the agent to affect the real world—interacting with external systems, retrieving new information, or making changes to data and resources.

The reasoning core typically consists of one or more models—possibly separate models for the reasoning and then planning steps, or potentially one large model able to do both. The process of planning is often iterative, taking place in a “reasoning loop” where the plan is refined based on new information or the results of previous actions. This iterative nature, combined with the ingestion of external data, creates a vulnerability to indirect prompt injection, where adversarially crafted information can manipulate the agent's planning process.

The complexity of plans determines the agent’s level of autonomy, which can range from selecting a predefined workflow to dynamically orchestrating multi-step actions. This level of autonomy directly governs the potential severity of a security failure—the more an agent can do on its own, the greater the risk from manipulation or misalignment, if the agent's actions do not have guardrails.

Beyond its core reasoning and planning capabilities, an agent relies on a variety of external components to access information, process data, and execute actions. This process is called orchestration because it involves managing and coordinating a variety of independent services and data sources to achieve a single, complex task. These resources provide the agent with its memory, its ability to act in the physical world, and the specific knowledge needed to complete taste. Securing these external components is critical, since they represent key interaction points that can be targeted by attackers to manipulate the agent’s behavior.

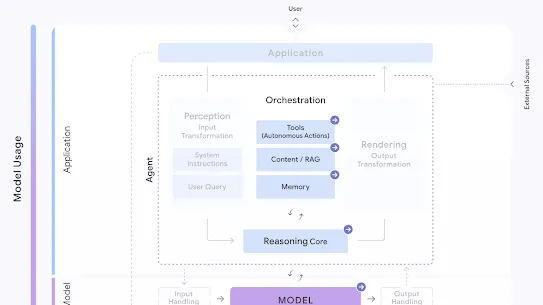

The Agent Risk Map includes several sub-components under Orchestration:

• Agent memory: Agent Memory allows an agent to retain context and learn facts across interactions. It becomes a security risk if malicious data is stored, leading to persistent attacks, or if memory isn't properly isolated between different users.
• Tools: Tools are the external APIs and services an agent uses to take action in the world, which must be secured with least-privilege permissions. A key risk comes from deceptive descriptions on third-party tools, which can trick the agent into performing unintended, harmful functions.
• Content (RAG): Content for Retrieval-Augmented Generation (RAG) provides the agent with curated knowledge to ground its responses and improve accuracy. The main security risk is data poisoning, where an attacker corrupts this knowledge source to manipulate the agent's output.
• (Optional) Auxiliary models: An agentic system might query other AI models (independent from the reasoning core) that support the agent's main pipeline, such as safety classifiers. As part of the AI supply chain, these models have their own vulnerabilities that could be exploited to attack the larger agentic system.

The final step in an agent’s workflow is response rendering, the process or formatting of an AI agent’s generated output for display and interaction within a user application. This stage is a critical security boundary because it involves taking dynamic content from the agent and displaying it within the trusted context of a user’s application, such as a web browser or mobile application. Flaws in this process can allow malicious content generated by a compromised agent to be executed by the application, leading to significant security breaches.

Agents often produce content in a universal format like Markdown, which is then interpreted and rendered by the specific client application. If this output isn’t properly sanitized according to the content type, it can create severe vulnerabilities. For example, unsanitized output can lead to attacks like data exfiltration or even cross-site scripting (XSS).
