Portal Object

This page provides detailed information on how to create and configure a portal object.

What is a portal object?

A portal is a public web app that users can access without signing in to Appian. A portal object allows you to define and customize the settings and content for your portal. This includes configurations, service access information, branding, and progressive web app (PWA) settings. The portal object makes it easy to both build and troubleshoot a portal in one place.

A portal object can be referenced in other objects. To learn more about this concept, see Referencing Objects in Expressions.

When to use this object

Use a portal when you need to:

• Provide anonymous access to an Appian application.
• Create a simple, branded web experience for external users.
• Expose specific interfaces or forms publicly without requiring an Appian license for every user.
• Create a Progressive Web App (PWA) that can be installed on a user's device.

To create a web app designed for specific users who sign in to Appian, create a site object instead.

Elements of this object

This object contains the following elements:

#	Section	Actions
1	Publication status banner	The publication status of the portal. Potential status can be: Not published Publish in progress Published If the publication status says Published with errors, it means the portal published, but it can't be displayed because of an error. A detailed error message will display below the publication status and a Service Unavailable message will display in the portal.
2	Build tab	Configure the basic elements of your portal object.
3	Troubleshoot tab	View error details to help debug issues with the portal.
4	Customization settings	Configurations: Modify the primary portal settings that determine how users experience the portal. Pages: Add, remove, modify, and organize the pages and page groups displayed in the navigation bar. Navigation Bar: Configure the layout, style, and branding of the navigation bar. Branding: Define the look and feel of the site, including colors, shapes, and logos. Service Access: Add a service account to give the portal permissions to information and processes in Appian; Add a reCAPTCHA connected system for portal pages that are configured to use reCAPTCHA. Progressive Web App: Configure the portal as a progressive web app to control the branding when users install the portal object as an app on their device.
5	Branding Preview	View what the navigation bar and branding configurations will look like.

Configurations

The Configurations section allows you to publish the portal and edit its display name and web address.

You can configure the following fields in this section:

Field	Action
Published	Toggle whether your portal is available to end users at the specified web address. For more information on publishing, see Manage a Portal.
Display Name	Edit the website name displayed in the browser tab and optionally in the navigation bar. Visible to end users. Follow the recommended naming standard for display names.
Domain for portal URL (if configured)	Select a custom domain for the portal if multiple are configured for the environment. This allows you to publish multiple portals at different domains, such as quote.insurecorp.com and claims.insurecorp.com. This configuration is only visible when multiple custom portal domains are configured for this environment.
Web Address	Click Edit to edit the Web Address Identifier used to construct the portal's public URL. Web addresses in your environment can contain a UUID to help you restrict access to portals that are intended for development and testing. This setting is applied at the environment level in the Admin Console. For more information on UUIDs, see Manage a Portal.

By default, portal web addresses use the Appian environment name for the subdomain and appianportals.com for the domain. For example, if an environment is called insurecorp, the URLs for portals published from the environment will use insurecorp.appianportals.com. If you would like to configure custom domains to use for portals in your environment, see Configuring Custom Domains for Portals.

Pages

The Pages section allows you to add up to ten pages (or page groups) to your portal. Adding more than one page automatically turns on the Show navigation bar option in the Navigation Bar section.

The order of the page titles in the portal object determines the order of the page titles in the navigation bar. To reorder the pages, use the and arrows.

Add a page

To add a page to the portal:

1. In the Pages section, click ADD PAGE.

2. In the Add Page dialog, configure the following fields.

   Field	Action
   Title	Enter the page title to display in the navigation bar and browser tab. Only displays when you add more than one page.
   Web Address Identifier	Enter the unique URL identifier for the page. If left blank, a random alphanumeric string will be generated.
   Icon	Select an icon to display with the page title when the navigation bar uses a SIDEBAR layout. By default, the file-o icon is selected.
   Content	Select the interface to display on the page. You can select an existing interface or click to create a new one.
   Rule Input Configuration	If the page uses an interface object with URL parameter-compatible rule inputs, configure default values and URL behavior.See Rule Input Configuration for more information.

3. Click ADD.
4. Reorder pages using the and arrows.

Rule input configuration

The interface you select for a portal page can use rule inputs of any type. However, certain types of rule inputs can use URL parameters to set their value. Portal pages that use these types of rule inputs will display Has rule input configurations under the interface name. When you edit the page, the Rule Input Configuration displays, which allows you to configure the rule inputs.

To link to portal pages using URL parameters, use a!urlForPortal().

For more information on using URL parameters, see Use URL Parameters for Site and Portal Navigation.

You can configure the following fields in this section:

Property	Description	Default
Encrypt URL parameters	Determines whether to use encrypted or plaintext URL parameters. To help keep data secure, URL parameters are encrypted by default. See Determine whether to encrypt url parameters for more information about when to use encrypted versus plaintext URL parameters.	Selected
Rule Input	The rule inputs from the selected interface. Only certain types of rule inputs that work with URL parameters will appear.	Read only
Enable in URLs	This only appears when Encrypt URL parameters is deselected. It allows you to opt in to using only the URL parameters that are safe to display in plaintext. To help keep your data secure, only enable the rule inputs that you need to use with URL parameters.	Toggled off
URL Parameter Name	The name used when constructing links to the page. You can change this if you want to rename a rule input and make sure existing links don't break, or if you just want to make the name shorter or more clear.	Rule input name
Default Value (optional)	The value to use whenever the URL doesn't provide a value. See Determine whether to use a default value for more information. The evaluated default value must be 100 characters or less. Otherwise, the default value will be ignored.	Null
Update URL when rule input values change	Determines whether to update the web address when rule input values change. For example, on page that has filters that work with URL parameters, the URL parameters in the web address will update with the selected filter value.	Selected*

*If the portal object was originally created in an environment earlier than Appian 21. 2, Update URL when rule input values change will be deselected by default.

Add a page group

Page groups allow you to group pages under a single navigation menu item. Each page group can have up to ten pages.

Before you can start adding and configuring page groups, you must add at least one page to the portal object.

To add a page group to the portal:

1. In the Pages section, click ADD PAGE GROUP.
2. In the Add Page Group dialog, configure the following fields.

3. Click ADD.

   Field	Description
   Title	Enter a page group title to display in the navigation bar.
   Web Address Identifier	Enter the unique URL identifier for the page group that will be a part of the URL for all pages in the group. If left blank, a random alphanumeric string will be generated.
   Icon	Select an icon to display with the page group title when the navigation bar uses a SIDEBAR layout. By default, the file-o icon is selected.

4. In the page group card, click Add Page to add pages to the page group. Only Interface page types can be added to page groups.
5. Reorder page groups or pages within the group using the and arrows.

Delete pages and page groups

To delete a page or page group, click the icon in the page or page group.

Deleting a page group will also delete all page configurations within that group. The interface objects themselves will not be deleted.

Navigation Bar

This section allows you to configure the appearance and layout of the portal navigation menu.

There are two different layout options that determine the styling and positioning of your site's navigation bar:

• HEADER BAR: Displays at the top of the site and offers two different style options. The navigation bar layout only applies to browsers. It doesn't affect sites in Appian Mobile.
• SIDEBAR: Displays on the side of the site. Page titles display with icons.

You can configure the following fields in this section:

Field	Action
Show navigation bar	Determines whether a navigation bar is displayed for single-page portals.
Layout	Select HEADER BAR or SIDEBAR to determine the position and style of the navigation bar.
Background Color	Set the background color of the navigation bar.
Selected Page Highlight Color	Set the highlight color for the selected page in the navigation bar.
Logo	Select an image with a transparent background to display as a logo in the navigation bar.
Logo Alternative text	Provide descriptive text for the logo for accessibility. We recommend updating the default value to convey the same information as the logo, such as the organization name or text used in the logo.
Show portal display name in navigation bar	Choose whether to display the Display Name from the Configurations section in the navigation bar.

Branding

When you edit these configurations, the portal object's branding preview automatically updates with your changes.

To ensure you are working with the most accurate representation of your interfaces, we recommend configuring the branding in the portal object early on in your app development. This allows you to take full advantage of the interface object Branding preview throughout your design process. When you are editing interface objects, use this menu to select the portal object that the interface will display in and see how your branding applies while you are designing.

For further information on configuring portal branding, see Designing Sites and Portals.

The Branding section allows you to configure a consistent look and feel for your portal.

You can configure the following fields in this section:

Field	Action	Default Value
Input Shape	Set the shape for input, selection, and picker fields, as well as tooltips, on all pages in the portal (Squared or Semi-rounded).	Squared
Dialog Shape	Set the shape for all dialogs displayed in the portal (Squared, Semi-rounded, or Rounded).	Squared
Button Shape	Set the shape for all buttons in the portal (Squared, Semi-rounded, or Rounded).	Squared
Use uppercase capitalization for button labels	Choose whether to use uppercase letters for all button labels. Turn this off if you want to control capitalization for each button component.	Turned on
Accent Color	Set the primary color for buttons, links, and other key elements. Avoid grayscale colors (black, white, and gray) as the accent color, since these are similar to colors used for interface elements. Avoid green/red colors as the accent color, since these are commonly used to indicate positive/negative values.	#1d659c
Loading Bar Color	Set the color for the loading indicator. Select a loading bar color with sufficient contrast against the navigation bar color to ensure users notice it.	Accent color
Favicon Image	Upload an ICO file to be used as the browser tab icon. The file must be 16x16 or 32x32 pixels and smaller than 100 KB.	Appian "a" icon
Typeface	View the current typeface for all sites and portals in the environment. Administrators can configure the typeface in the Admin Console.	Open Sans

Service Access

The Service Access section allows you to configure access to two different services:

• The platform service via a Service Account.
• The Google reCAPTCHA service via a connected system.

You can configure the following fields in this section:

Field	Action
Service Account	Select the service account used to give the portal permissions to data and processes in Appian. Make sure the service account is in a group that has access to the data, documents, and process models used in your portal, but doesn't have access to unrelated data. For streamlined efficiency and convenience, you have the option to assign your service account to the relevant group(s) simultaneously while creating your portal. Note that if your portal uses a web API, you can use the same service account for API key authentication. See Service Accounts in Portals for more information.
Google reCAPTCHA	Select a reCAPTCHA connected system to monitor your portal for unauthorized usage.

Progressive Web App (PWA)

In the Progressive Web App section, you can configure your portal to be installable on a user's device as a progressive web app (PWA).

It is a good idea to select this if:

• You want to give your users an easy way to access a portal that they use frequently. For example, a portal that allows users to submit repair requests.
• You want to make sure your portal maintains consistent branding if a user decides to install the app on their device.

See the What is a progressive web app section for more information about PWAs.

You can configure the following fields in this section:

Field	Action
Configure portal as a progressive web app	Enables PWA functionality for the portal.
App Name	Sets the default name that displays when a user installs the app. Names can use letters, numbers, and spaces and can be up to 12 characters long, including spaces.
App Icon	Sets the icon to use when users install the portal on their device. By default, the Appian "a" icon is selected. We recommend selecting a custom icon, which you can upload as a document. For icon best practices and requirements, see Designing an app icon.

What is a progressive web app?

A PWA is a web app that looks and behaves as if it is a native application.

PWAs allow developers to have more control over the experience end users have when they install a portal on their device. When you configure a portal as a PWA, you specify the default app name and icon that users see when they install the portal on their device.

In some browsers, when users first visit a PWA-configured portal, a prompt displays that asks them if they want to add the portal to their device.

Additionally, when a user opens an installed portal on their device, it gives a more app-like experience. For example, the address bar doesn't display, and it may display its own menu bar on some devices.

Designing an app icon

The app icon is one of the first parts of your PWA that your users interact with. To make sure your icon looks clean and professional on all devices and displays, there are some general guidelines and requirements you should follow.

Icon size

To make the portal app icon work across all devices and browsers, it must be at least 512 x 512 pixels and square. However, since it may be displayed in higher resolution on some devices, we recommend icons that are 1024 x 1024 pixels. The app icon will be resized depending on where it displays.

Icon safe zone

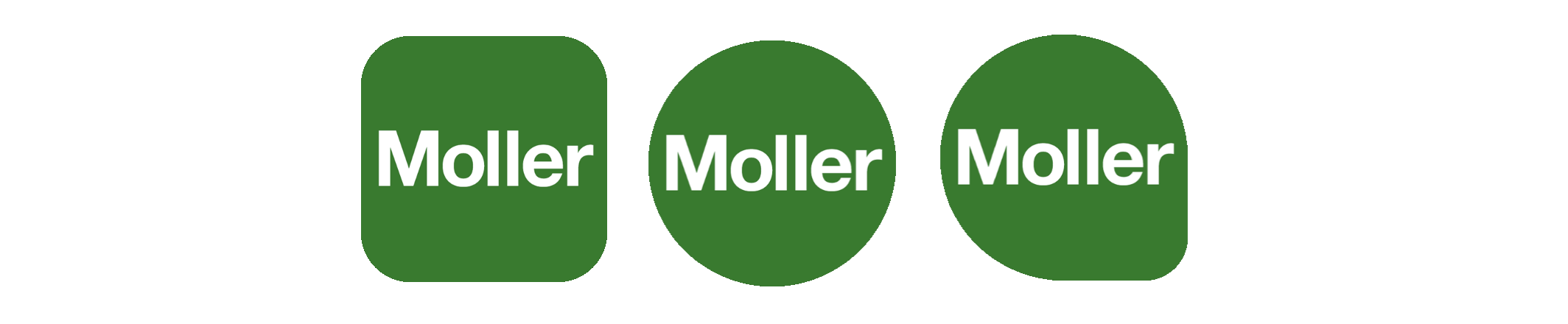

App icons are maskable, meaning that the icon will fill up any shape that the device uses for icons. For example, icons may be circle, square, or teardrop shaped.

This means that the edges of your app icon may be cut off to fit a certain shape. To make sure that the important parts of your icon aren't cut off, design your app icons with a safe zone. The standard safe zone is a circle in the center of the icon with a radius that is 40% of the icon size. For more information about the safe zone and maskable icons, see this web.dev article.

Device settings for portals published from the same environment

If a user installs multiple portals that were published from the same environment, the portals may share some of the same settings. For example, cookie preferences and permissions such as access to the device microphone and location.

For these types of settings, the user will be unable to choose different options for PWAs published from the same environment.

Troubleshoot Tab

The Troubleshoot tab allows you to view error details and key metrics that can help you troubleshoot issues and ensure your portals are responsive, reliable, and able to handle varying levels of user demand.

The following image highlights the sections that make up the Troubleshoot tab of a portal object. For more information about how to troubleshoot portal issues using the information on the Troubleshoot tab, see Troubleshooting a Portal.

#	Section	Available Actions
1	Errors	View an Errors grid with up to 100 of the most recent errors that users have encountered on a published portal from a date range up to 90 days in the past. Download the Portal Error Log (1a) with all error messages that users have encountered on a published portal from a date range up to 90 days in the past.
2	Monitor Portals	Launch the Portal Monitoring view (2a) in a separate tab.
3	View System Activity	Download the Portal Server Log (3a) with system-level log entries for the microservice that runs the portal.

Branding Preview

The Branding Preview is an interactive panel that allows you to visualize the navigation and branding configurations you've chosen.

It is for visual preview only and does not allow you to test functionality. It does not:

• Allow you to test the expressions, interface components, or functionality of the pages.
• Display component plug-ins. A placeholder image with a plug icon displays in their place.

To see these settings applied to the portal, save and publish the portal object and click the link under Web Address to open the portal.

Security

Portals are publicly accessible, but that doesn't mean they aren't secure. You control access to your Appian data and processes using service accounts. End users will only be able to access the objects and data in your portal that you give them access to through service accounts.

Additionally, portals have both design-time and runtime security protections to keep your portal safe. Object security is configured through role maps.

The following table outlines the actions that can be completed for each permission level in a portal object's security role map:

Actions	Administrator	Editor	Viewer
View the portal	Yes	Yes	Yes
View the definition	Yes	Yes	Yes
View the security	Yes	Yes	Yes
Republish the portal	Yes	Yes	No
Receive email error alerts	Yes	No	No
Update the security	Yes	No	No
Delete the portal object	Yes	No	No

Manage the object

This section explains how to create, edit, and delete portal objects.

Common object options

There are a few common options available across different design objects. The following options are available in a portal object.

Option	Available?
Versioning	No
Renaming	Yes
Viewing Appian Design Guidance	Yes
Duplicating	No
Viewing Performance Details	No
Object overwrite protection	Yes

To view options that are available from the toolbar in Appian Designer, see Common View Elements.

Create the object

To create a portal object:

1. In your application, go to the Build view.
2. Click NEW > Portal.
3. In the Create Portal dialog, configure the following properties:

Property	Action
Name	Enter a name for the object. We recommend following the Standard Object Names convention. Not visible to end users.
Display Name	Enter the website name to display in the browser tab. Optionally, this name can also be displayed in the navigation bar. Visible to end users. Follow the recommended naming standard for display names.
Web Address Identifier	Enter a unique identifier that will be part of the portal's web address. Appian uses this identifier to construct the web address where published portals are available to end users. The web address identifier must be unique in the current environment and any environments that you deploy the portal object to. For more information on web address identifiers, see Configurations.
Description	(Optional) Enter a description for the object.

1. Click CREATE.
2. Review the security and update as needed, then click SAVE.

Edit the object properties

To edit the portal object properties:

1. In the Build view, click the name of the portal object. The object will open in a new tab.
2. In the settings menu, click Properties.

3. In the Portal Properties dialog, configure the following properties:

   Property	Action
   Name	Enter a name for the object.
   Description	Enter a description for the object.

4. Click OK.

Delete the object

To delete a portal object:

1. In the Build view, select the checkbox next to the object's name.
2. Click DELETE in the toolbar. System administrators can delete multiple objects at once.
3. Review the list of dependent objects before confirming the deletion. See Object Relationships for more information about the impact of deleting objects that rely on each other.

See also

• Portal Best Practices: For design guidance on creating portals.
• Working with Data in a Portal: To learn how to query and write data using a portal.
• Manage a Portal: For information on publishing, testing, and deploying a portal.
• Designing Sites and Portals: Learn best practices for creating functional and beautiful portals, including guidance on branding, color schemes, and page organization.
